Traditional Board and Batten metal wall panels with authentic barn-style appearance and .75-inch raised battens. Perfect for agricultural, residential, and commercial applications across Western Canada.
Choose a Printed Series finish and see it applied directly to the Board and Batten 3D model.
Currently viewing: Saddle
Use the color picker in the top-left of the model to switch Printed Series textures.

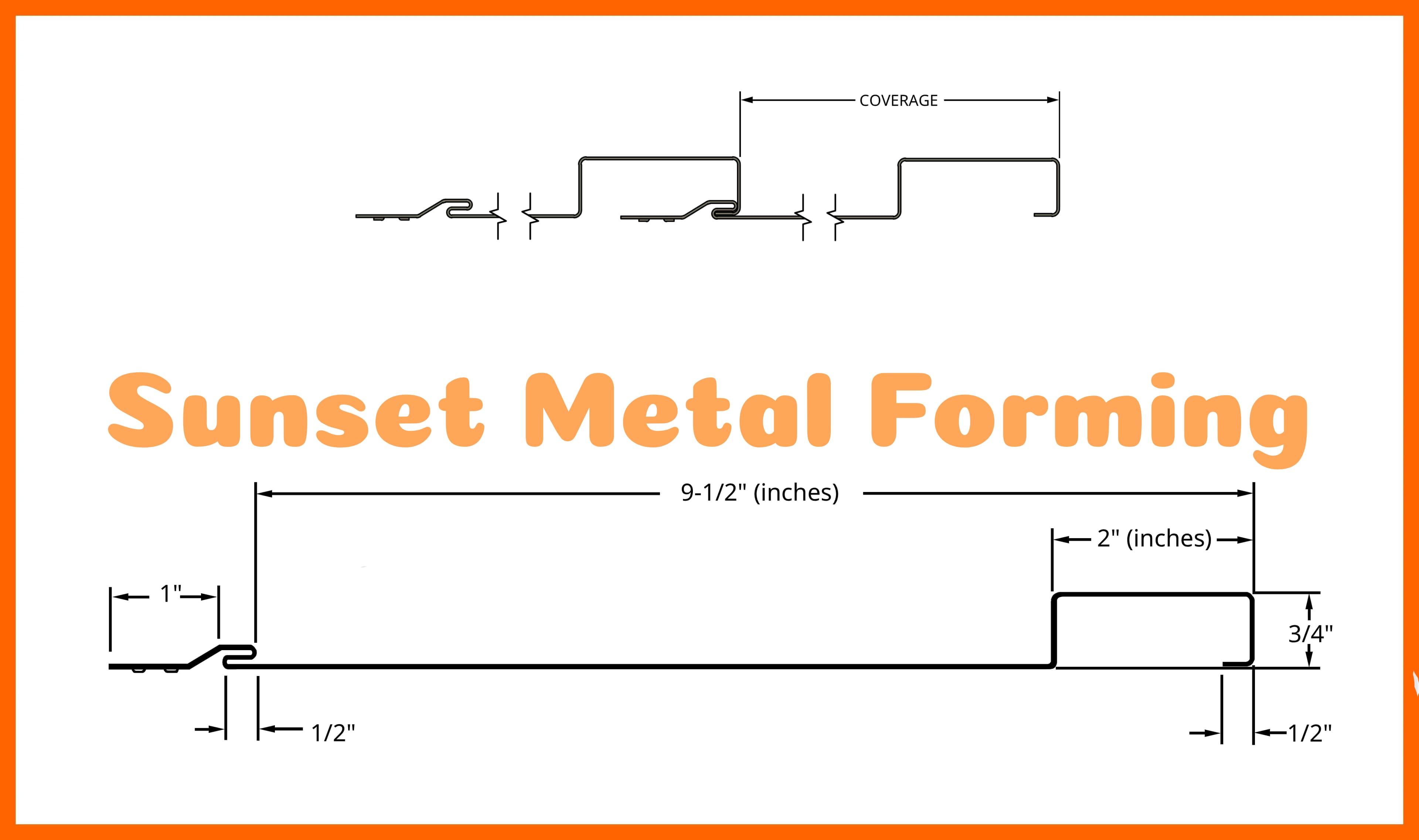

Board and Batten metal wall paneling is a classic agricultural-style system that features wide, flat panels with raised battens (ribs) covering the seams. This traditional design creates pronounced vertical lines and authentic barn-style aesthetics perfect for rustic and agricultural applications.
Our Board and Batten panels feature .75-inch raised battens that provide excellent water shedding and create dramatic shadow lines that enhance the building's visual appeal. The hidden nail strip keeps all fasteners concealed beneath the batten for a clean, finished look.
Available in 22, 24, and 26 gauge options with over 90 stunning colors, Board and Batten panels can be pre-rolled to custom lengths at our Alberta facility and picked up or delivered. This system is ideal for agricultural buildings, barn-style homes, and commercial applications where traditional aesthetics are desired.
Board and Batten provides traditional barn-style appearance with pronounced vertical lines that create authentic agricultural aesthetics. The raised battens cast dramatic shadow lines that enhance architectural appeal.
Perfect for agricultural buildings, barn-style homes, storage facilities, and commercial applications where rustic or traditional appearance is desired. Suitable for both residential and commercial projects.
The .75-inch raised battens provide superior water shedding and help prevent water infiltration at panel seams. Designed for reliable vertical wall applications in demanding weather conditions.
Board and batten panels fasten via a hidden nail strip concealed beneath the raised batten, keeping all fasteners out of sight. This gives a clean finish while remaining straightforward to install with standard tools.
Standard Board and Batten offering excellent performance for most residential and agricultural applications. Provides reliable weather protection with authentic traditional appearance.
Enhanced thickness for demanding applications requiring additional strength. Popular choice for commercial buildings and projects with extreme weather exposure or heavy use.
Maximum strength Board and Batten for the most demanding applications. Ideal for large agricultural facilities, extreme weather conditions, or anywhere maximum structural performance is required.
Board and Batten panels are pre-rolled to your exact specifications at our Lamont County, Alberta facility. Unlike standing seam or snaplock, board and batten is not available for on-site rolling — all panels are manufactured in our shop and ready for pickup or delivery to your project.
Board and Batten provides a classic barn-style appearance with pronounced vertical lines that create a distinctive architectural look.
Engineered with secure fastening systems to withstand extreme weather conditions with superior wind resistance up to 160 mph (257 km/h) when properly installed.
The raised batten provides excellent water shedding and creates dramatic shadow lines that enhance the building's visual appeal.
Perfect for agricultural, residential, and commercial applications where a rustic or traditional appearance is desired.
Based in Alberta, we proudly serve the entire Western Canadian region with premium Board and Batten metal wall panel solutions. Our traditional fastening systems ensure you get exactly what you need for your project.
Calgary, Edmonton, Red Deer, Lethbridge, Grande Prairie
Vancouver, Victoria, Kelowna, Kamloops
Regina, Saskatoon, Prince Albert
Winnipeg, Brandon
Board and batten metal siding features wide flat panels with raised battens (ribs) covering the vertical seams. The .75-inch raised battens create a pronounced shadow line and classic barn-style aesthetic using an exposed fastener system — straightforward to install and repair.
Board and batten uses a hidden nail strip under the raised batten — fasteners are completely concealed once installed. It's cost-effective, fast to install, and suits agricultural, barn, and rustic commercial projects. Standing seam uses concealed clips for a modern, seamless look preferred on contemporary or high-end builds.
Our board and batten wall panels carry a 160 mph (257 km/h) wind rating when properly installed — engineered to handle Alberta's demanding weather conditions including high-wind zones.
Board and batten is available in 26 gauge (standard — suits most residential and agricultural builds), 24 gauge (premium — recommended for commercial), and 22 gauge (heavy duty — for demanding or high-wind environments).
Yes — board and batten panels are pre-rolled to your exact lengths at our Lamont County, Alberta facility. Note that board and batten is not available for on-site rolling; all panels are manufactured in our shop and ready for pickup or delivery.
Over 90 colours are available including classic solid colours, signature colours, the Tex series, and our Printed Series — which includes realistic wood grain and stone textures applied to the metal surface. Galvalume (unpainted) is also available. Use the visualizer above to see Printed Series colours on the 3D model.
Yes — board and batten is one of the most popular choices for agricultural buildings, barns, shops, and storage facilities across Alberta and Western Canada. The hidden nail strip keeps fasteners concealed under the batten for a clean finish, and the raised batten profile sheds water effectively on vertical walls.
